UHX™is a wear-resistant polymer that is highly abrasion-resistant due to specialized additives and a unique cross-linked molecular structure for a variety of industries. The smooth non-stick surface of UHX™promotes material flow in bulk handling applications, eliminating the need for vibrators and air cannons in our wear-resistant polymer.

Request A Quote

Suggested Applications

  • Bucket Elevator Guides
  • Bunker Liners
  • Chain Guides
  • Chute Liners
  • Conveyor Wear Strips
  • Guide Rollers
  • Hanger Bearing
  • Idler Wheels
  • Mixer Paddles
  • Tripper Car Liners
  • Trough Liners
  • Wear Pads

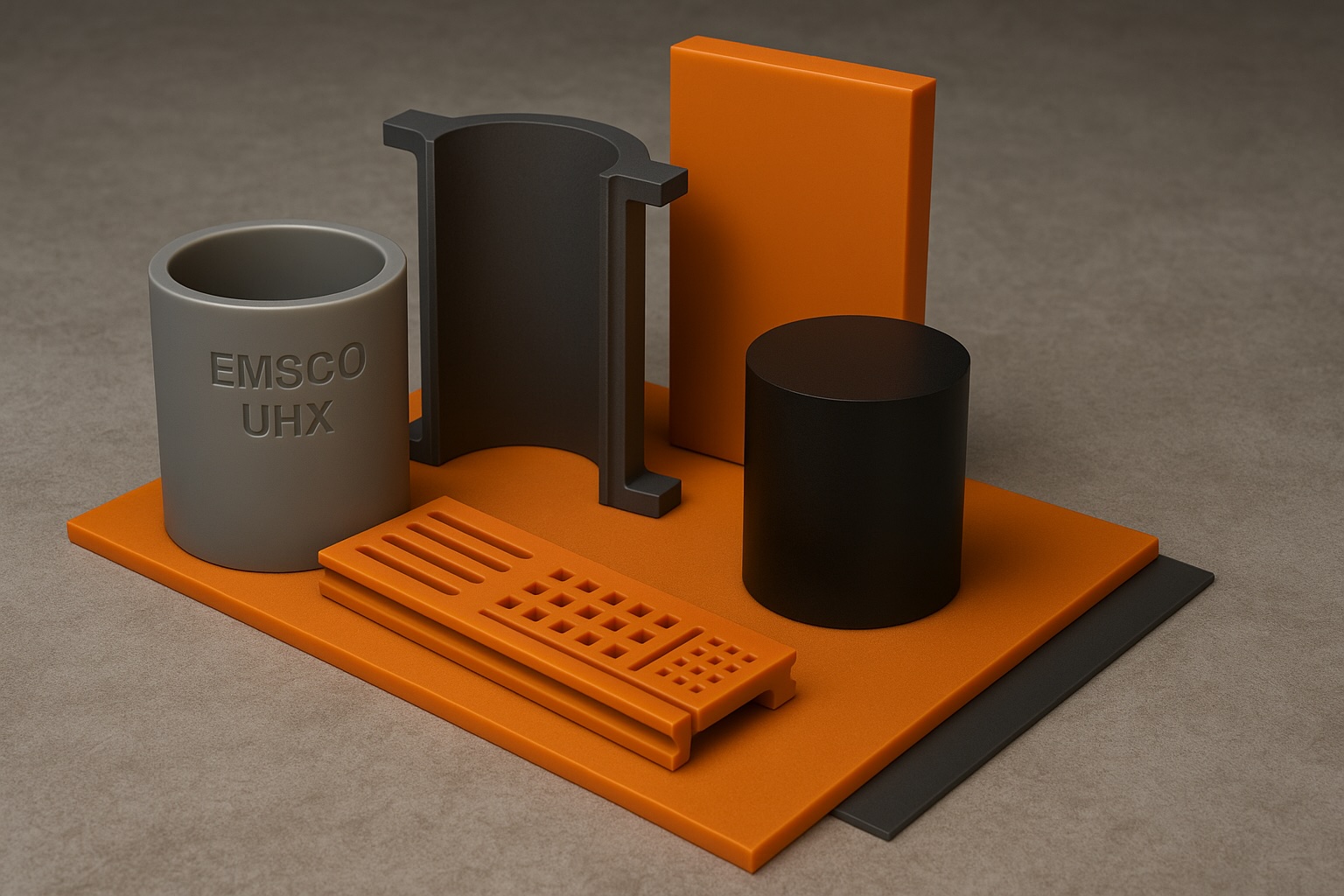

Available Forms

  • Plate
  • Bar
  • Tube

Sizes

  • Standard Sheet
    • Thickness: 1/8" min - 4" max
    • Width: 48"
    • Length: 120"
  • Custom widths and lengths avaiable

Services Available

  • Complete Engineering
  • Fabrication
  • Installation

Typical Mechanical Properties

UHX™Test Method
Coefficient of Friction.07ASTM D 1894
Density0.94 g/cm^3ASTM D 792
Izod, Impact Strength at 23 ̊ C18 ft-lbs/in.ASTM D 256A
Hardness, Durometer (D/15)68ASTM D 2240
Abrasion Test 90Internal %
Tensile Properties @ Yield 3400ASTM D 638 2in/min.
Tensile Properties @ Break4900ASTM D 638
Elongation @ Break321%ASTM D 638
Flexural Modulus, 1% Secant PSI152 MPaASTM D 7908
Mean Coefficient of Expansion1.6 x 10^4 1/KLeitz Dilatometer
