EMSCO® DuraChrome™ is an engineered composite overlay plate comprised of chrome, manganese, and vanadium in an iron base and metallurgically bonded to mild steel with a precision fusion process. This advanced overlay delivers exceptional wear and abrasion resistance, with a typical hardness of 62 Rockwell “C.” Designed for severe service environments, DuraChrome™ performs where impact, heat, and corrosion resistance are critical. Available in multiple grades and overlay configurations, DuraChrome™ supports a wide range of industries as a reliable, long-life wear solution.
Available Products:
EMSCO® DuraChrome-SL™ Cladded Wear Plate & Pipe, Single Pass Overlay
EMSCO® DuraChrome-XL™ Cladded Wear Plate & Pipe, Double Pass Overlay

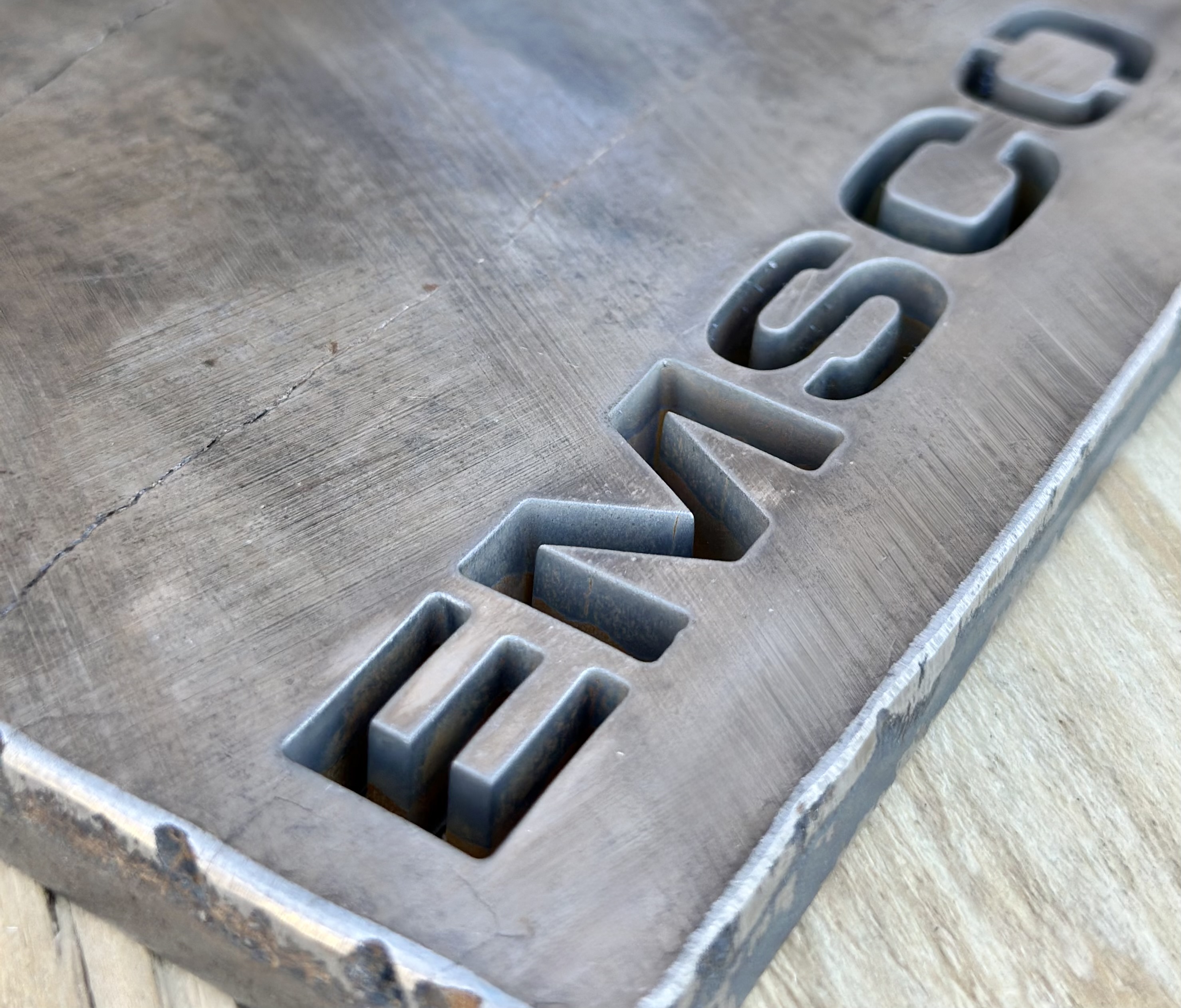

EMSCO® DuraChrome-BG™ Ground and Polished Cladded Wear Plate, Single or Double Pass Overlay
SUGGESTED APPLICATIONS
- Conveyor Wear Strips
- Cyclone Liner Plates
- Distributor Wear Plates
- Fan Blades and Liners
- Mining Equipment
- Piping
- Reclaimer Buckets
- Replacement Liners
- Truck Beds
- Wear Pads
- Wear Plates
AVAILABLE FORMS
- Plate
- Pipe
- Custom metallurgy and manufacturing available upon request
SIZES
- Standard Sheet | up to 96" wide x 132" long
- Custom widths and lengths available
SERVICES AVAILABLE
- Complete Engineering
- Fabrication
- Installation
Product Spec Sheet
